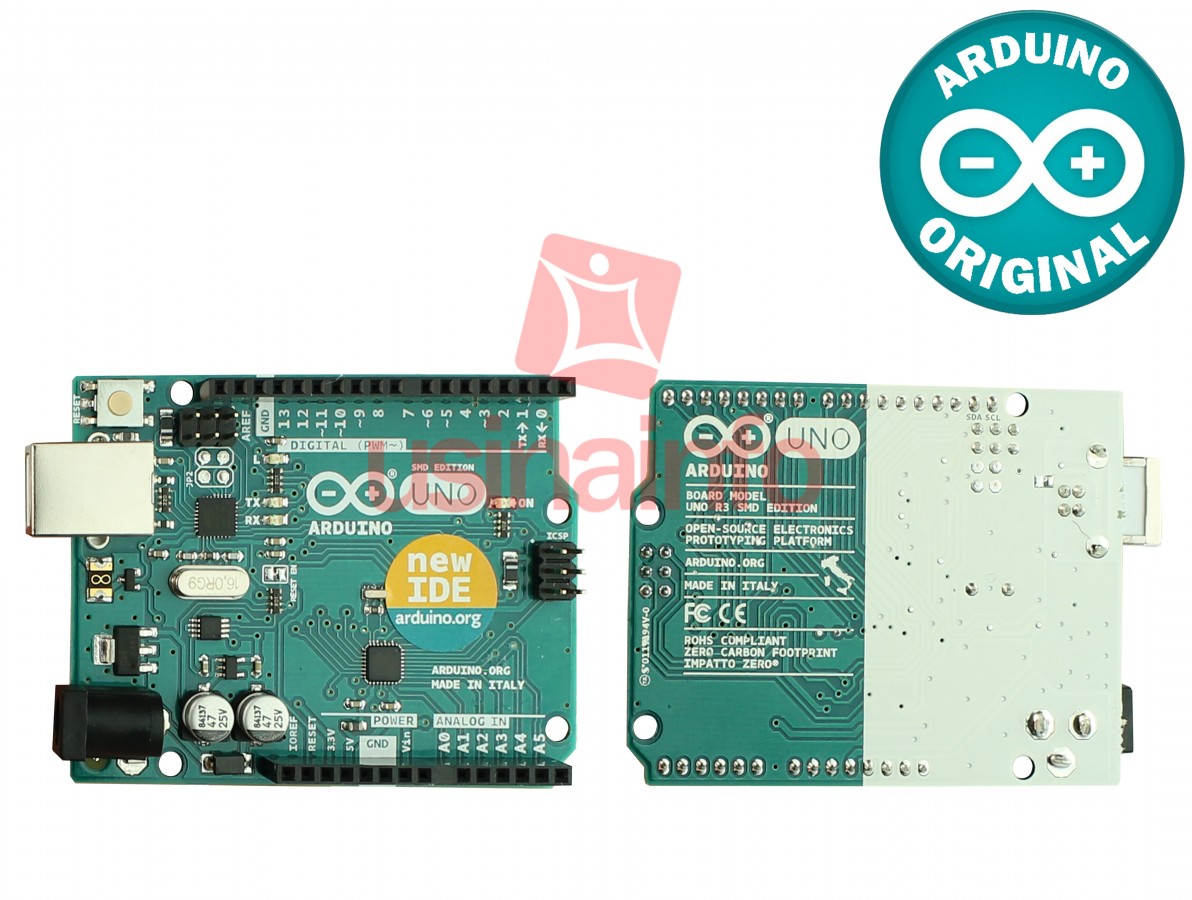

The digital pins 0 (rx) and 1 (tx) can be used for this communication which is provided by atmega328 microcontroller on the board. Arduino uno smd edition front view. The board is equipped with sets of digital and analog input/output (i/o) pins that may be interfaced to various expansion boards (shields) and other circuits.
